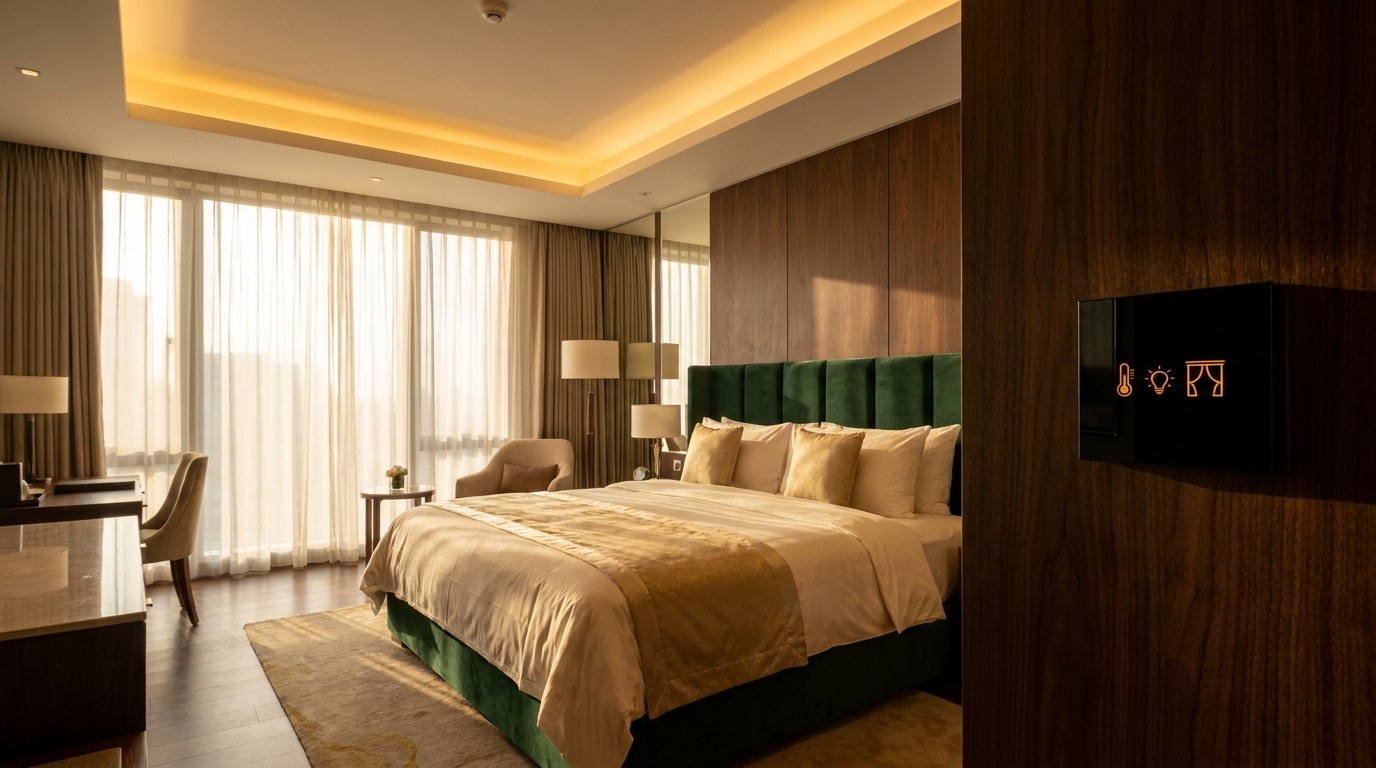

Bedside Controls

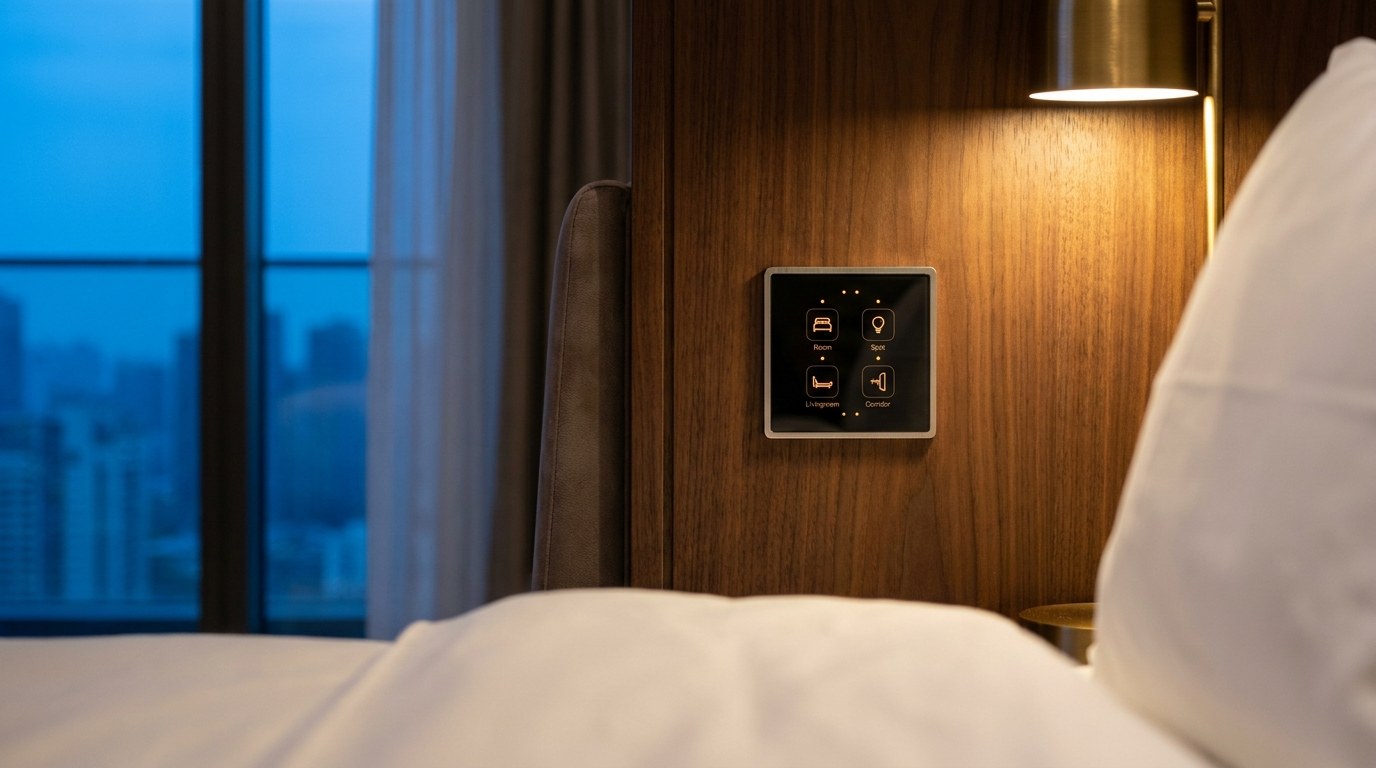

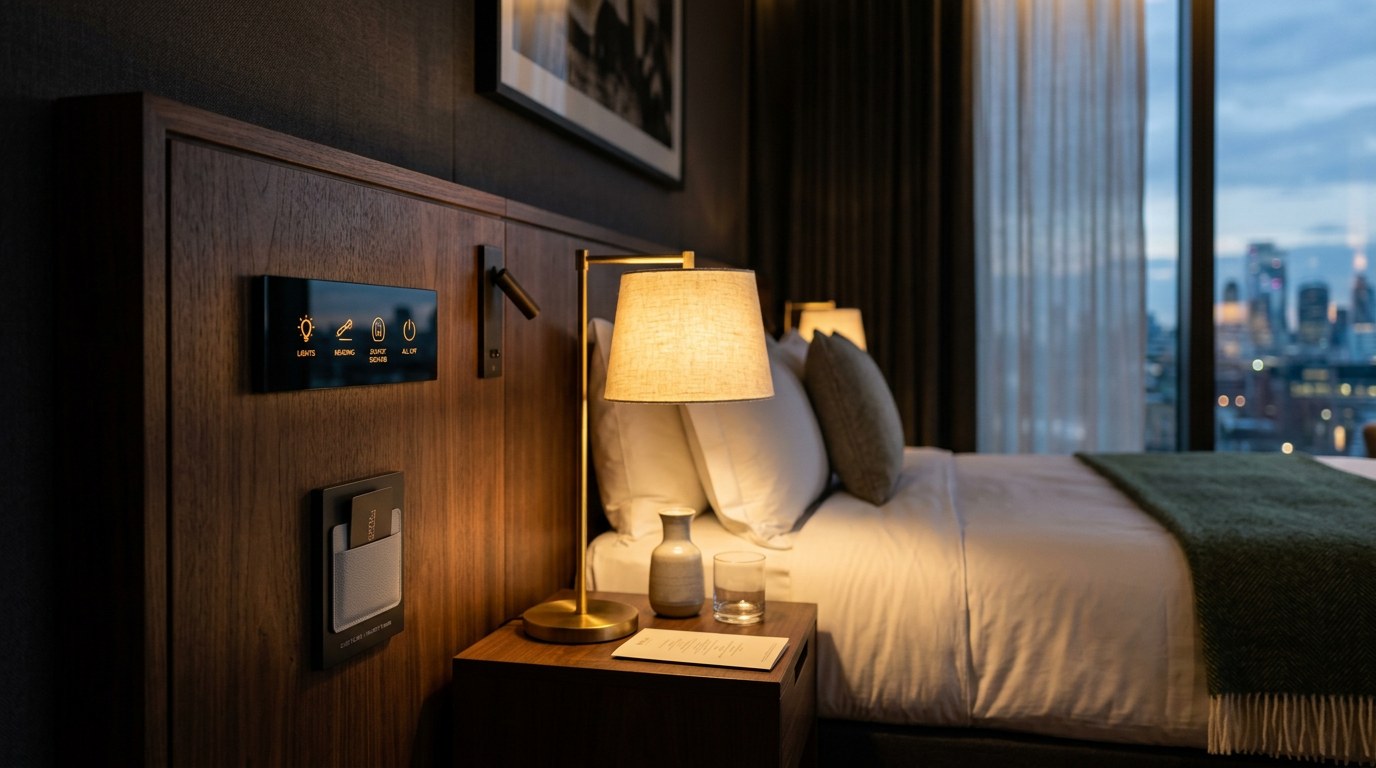

A compact panel placed within arm’s reach of the bed, giving guests control of bedside and room lighting, master off and scenes without getting up. Same tempered glass construction and backlighting as the main room panels, in a smaller format suited to a headboard or nightstand wall.
The range
Configurations & finishes

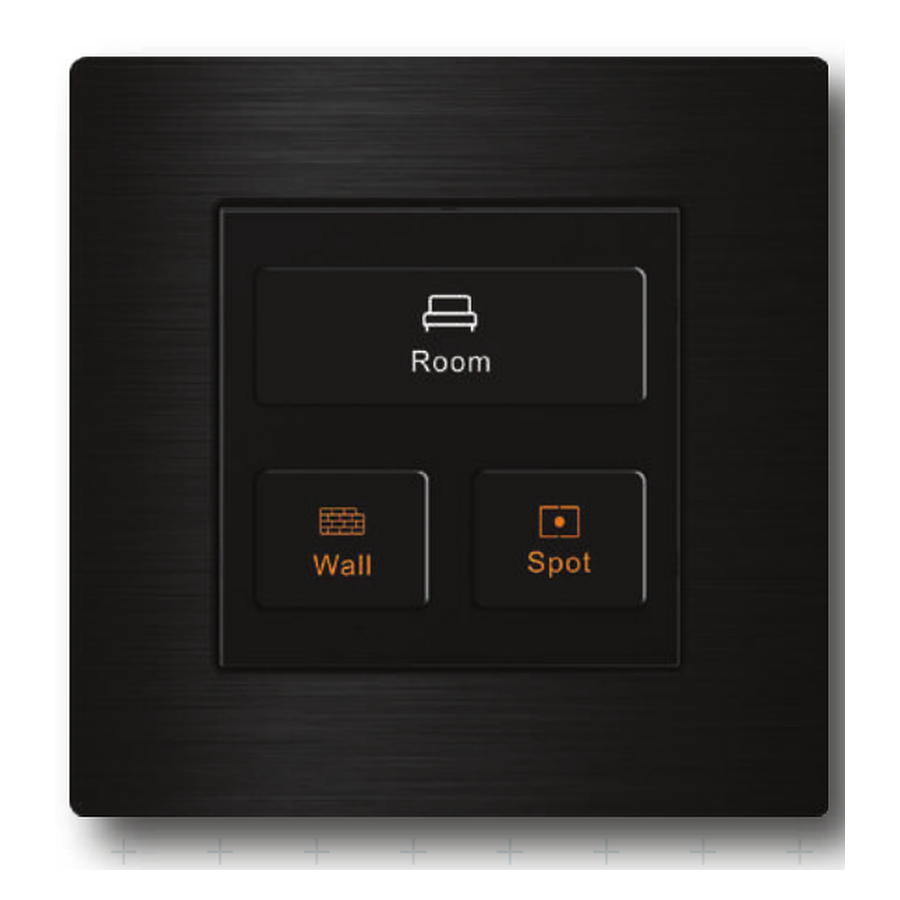

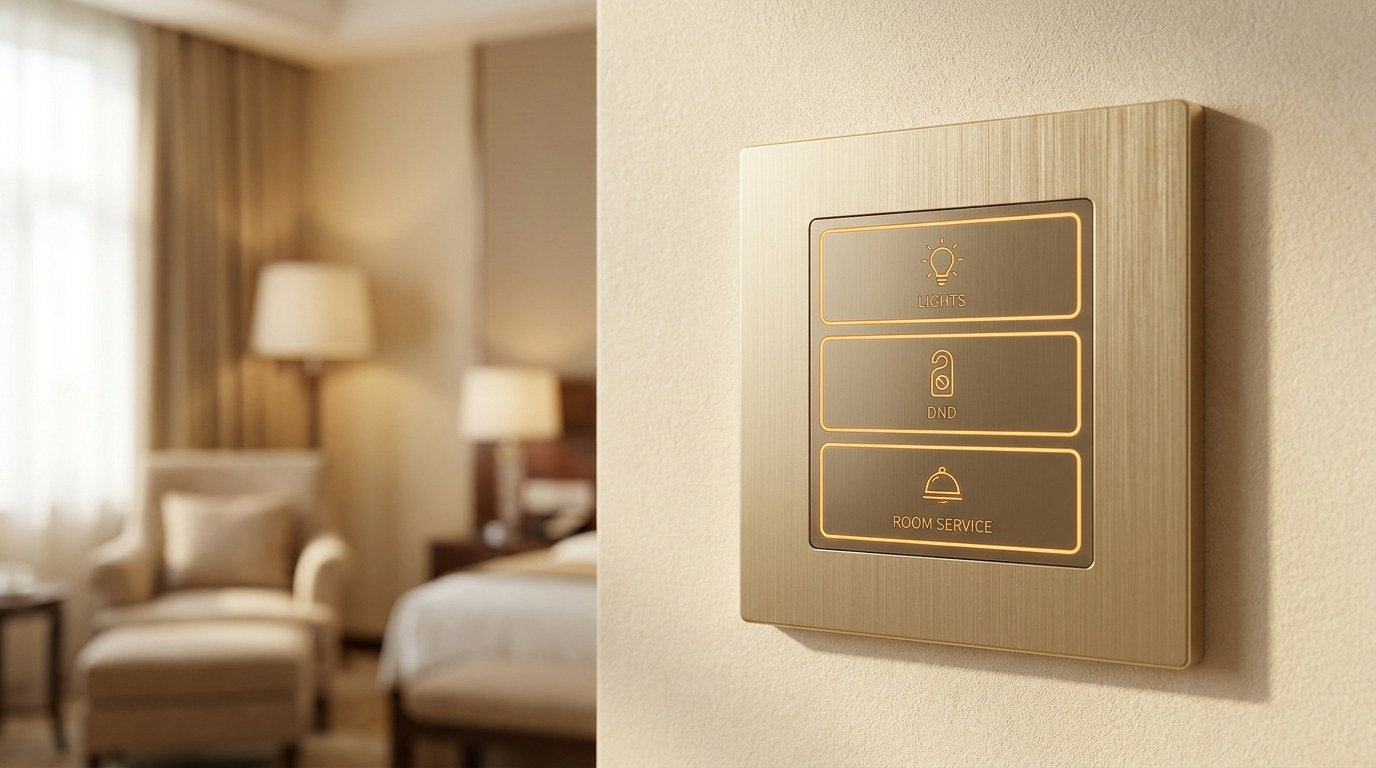

One design language across every gang count. Panels are supplied in black glass, black and gunmetal brushed metal and champagne gold, with icons and labelling engraved to your room layout.
Control functions
Light controlCurtain controlDimmer light controlMaster controlFan controlAmbient and welcome lights
Key features

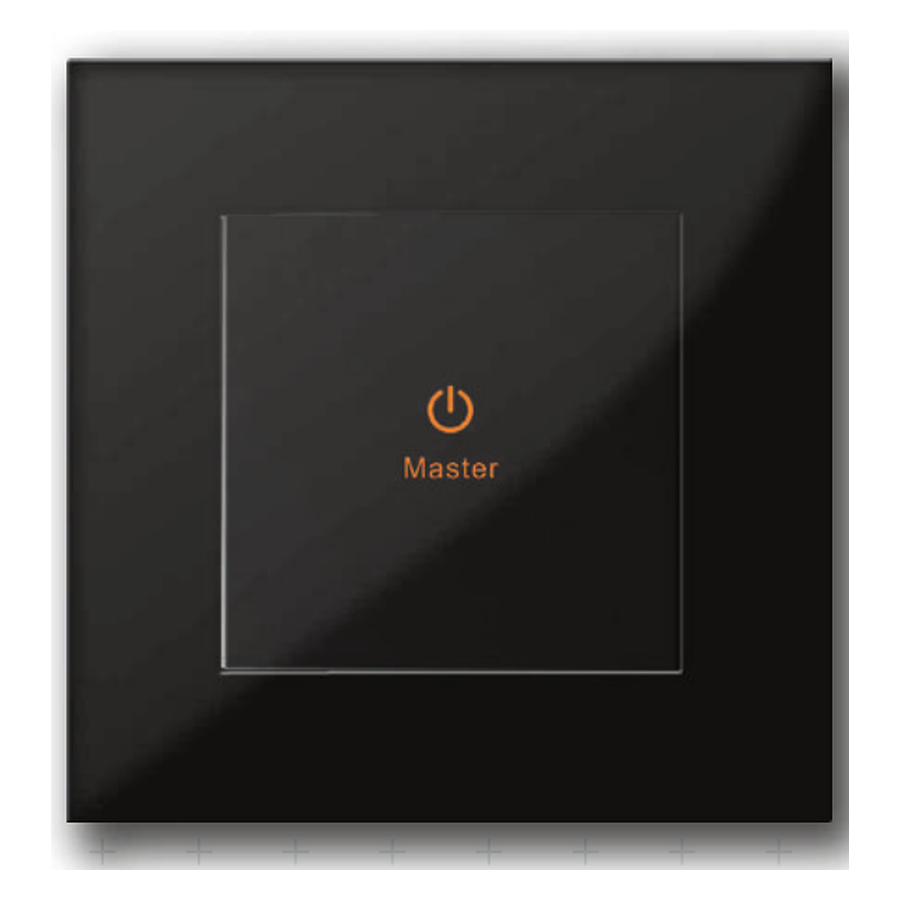

- Master off from the bed

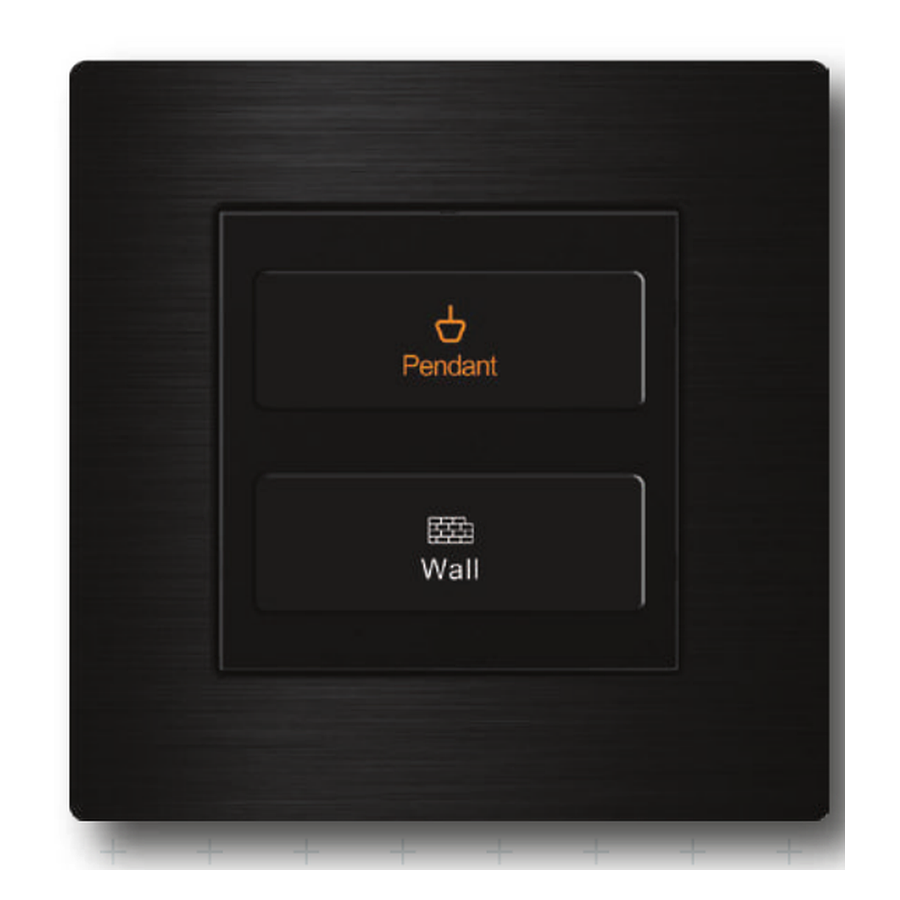

- Individual bedside and reading light control
- Scene recall
- Night-time backlight guidance

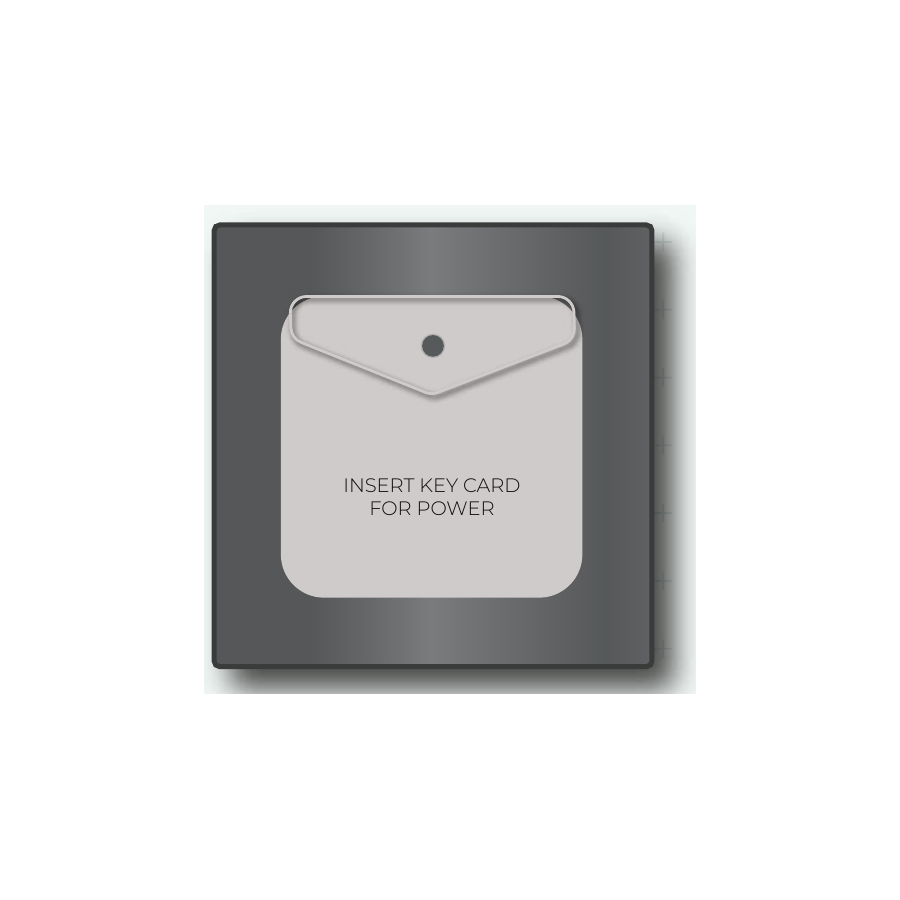

- Pairs with the Mifare key card switch
- Same 4 mm tempered glass build as the room panels
Specifications
- Technology
- Networked RS485 Modbus protocol
- Power supply
- 12 V – 36 V DC
- Material
- 4 mm tempered glass
- Touch type
- High-sensitivity LED touch panel
- Size (1–6 button)
- 86 × 86 mm

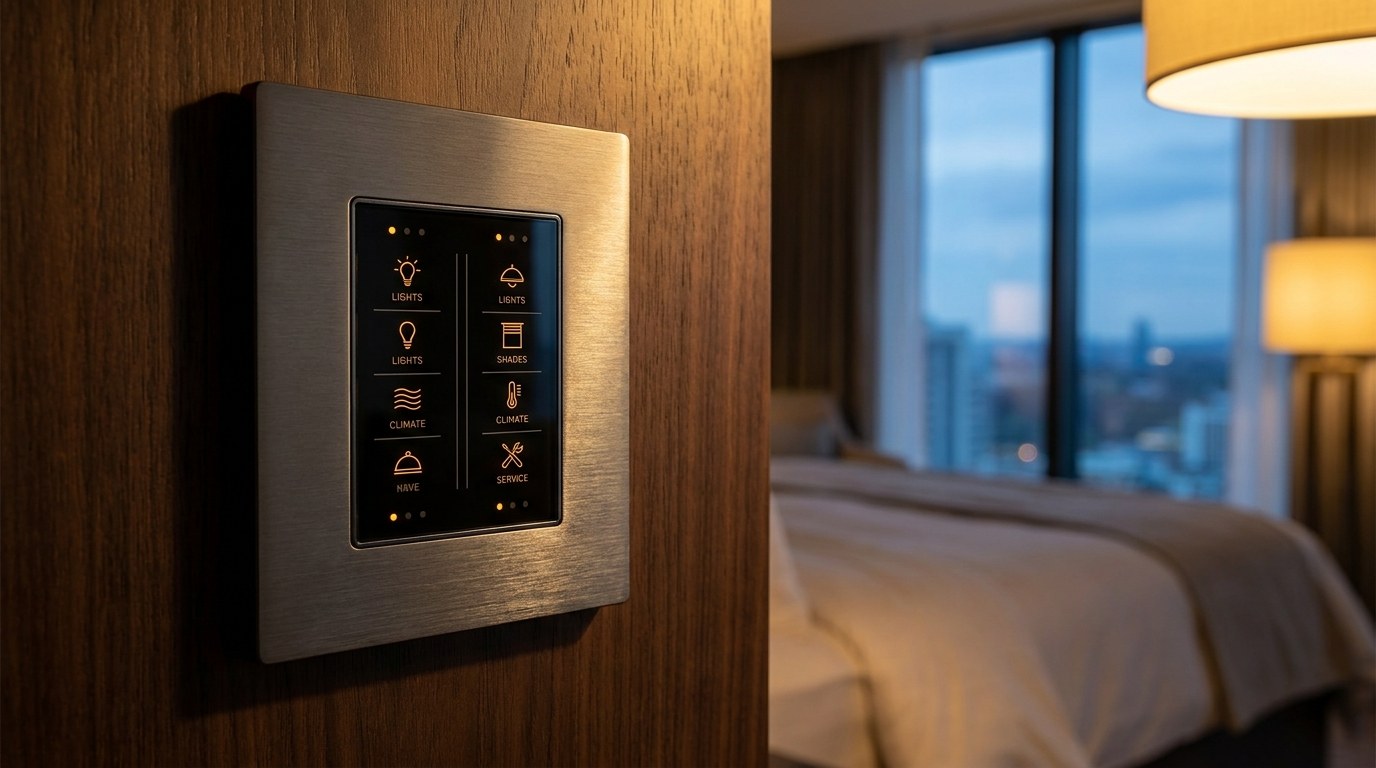

- Size (8 button)
- 105 × 86 mm
- Working temperature
- −10 °C to 60 °C
- Working humidity
- 10 – 95 % RH
- Service life
- Up to 1,000,000 touches
- Backlighting
- LED backlit buttons
- Touch icons
- Customisable, laser engraved
Specifications are indicative and may vary by configuration. Contact us to confirm details for your project.
Need help specifying?
Tell us about the property and we will advise on panel counts, finishes and controller sizing.
