DasKlug Hardware
Smart Switches

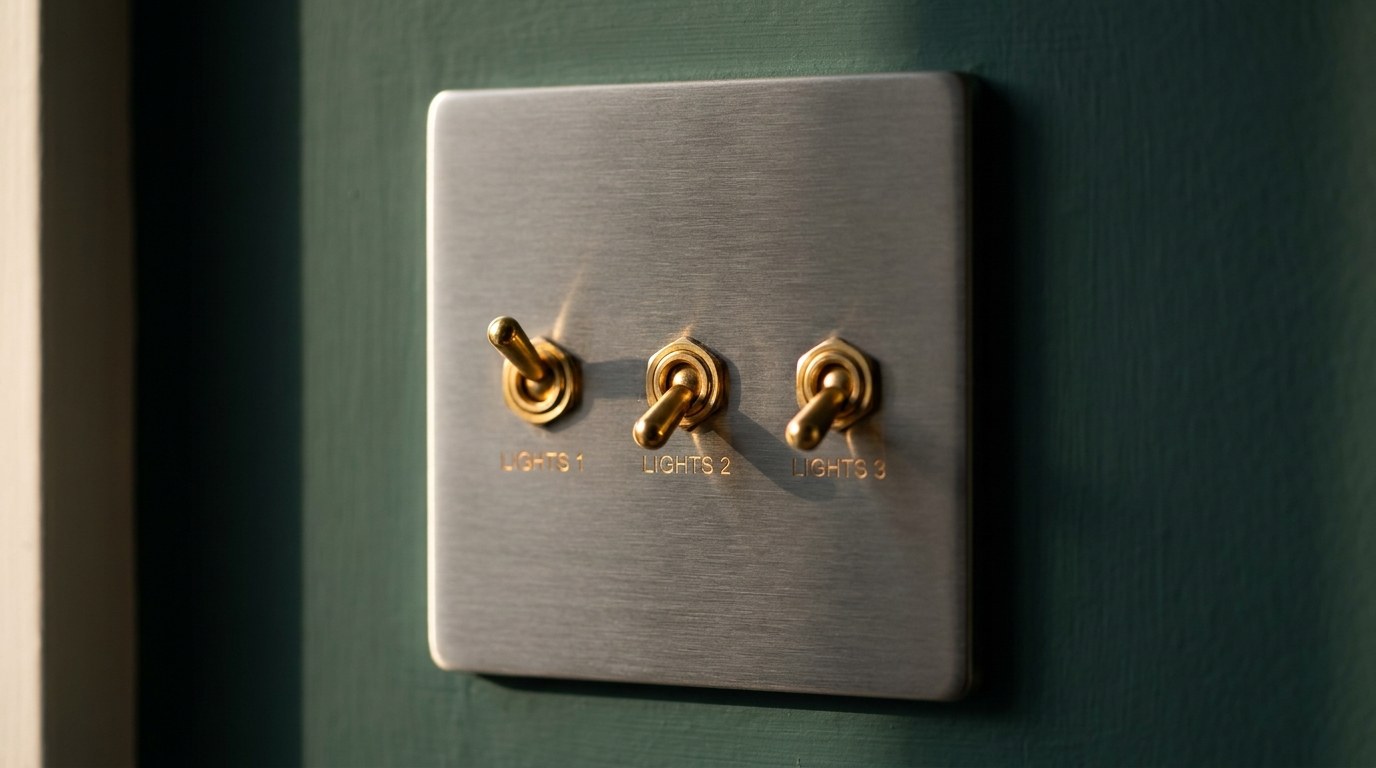

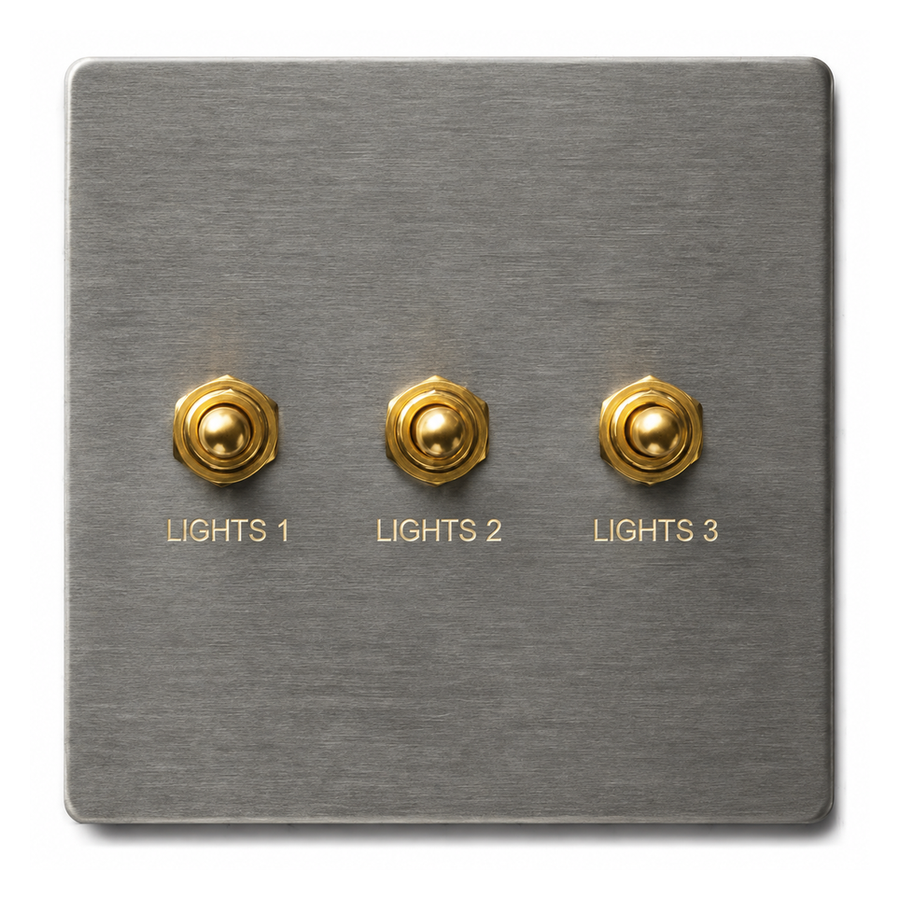

The switch range spans flat touch plates and traditional metal plates with brass toggle levers, in brushed and polished finishes including champagne gold, black, gunmetal, silver and matte white. All-metal construction means the finish does not degrade over years of guest handling, and every function is configurable rather than fixed at manufacture.
The range
Configurations & finishes

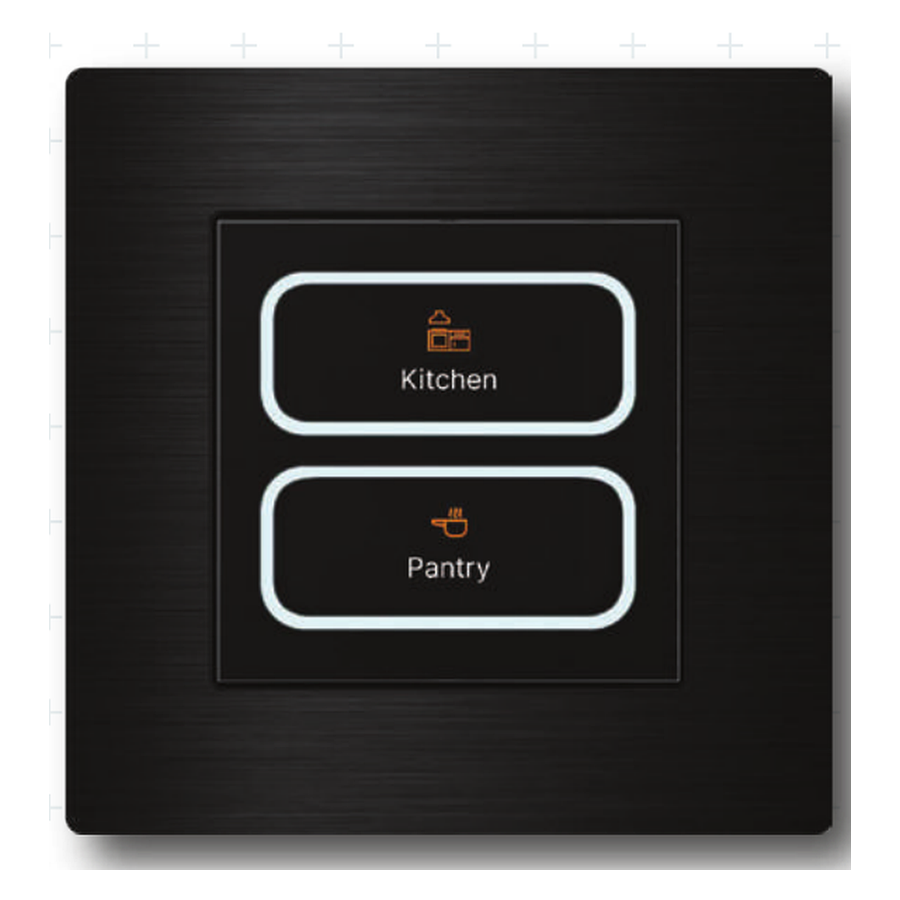

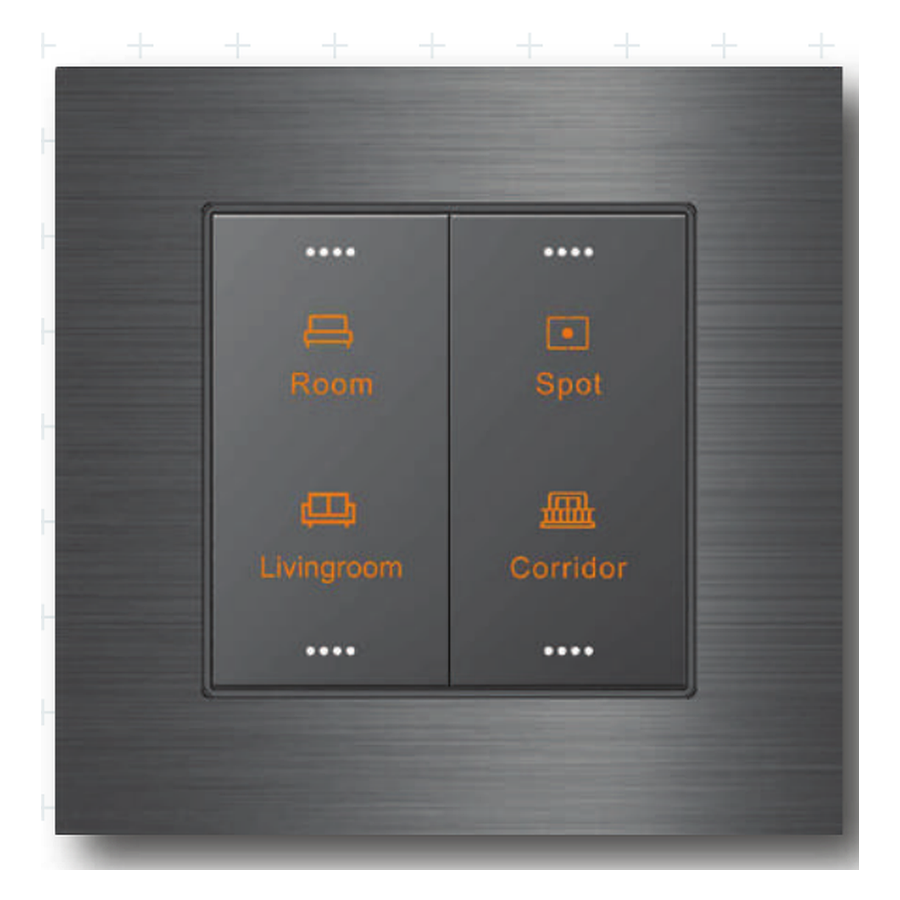

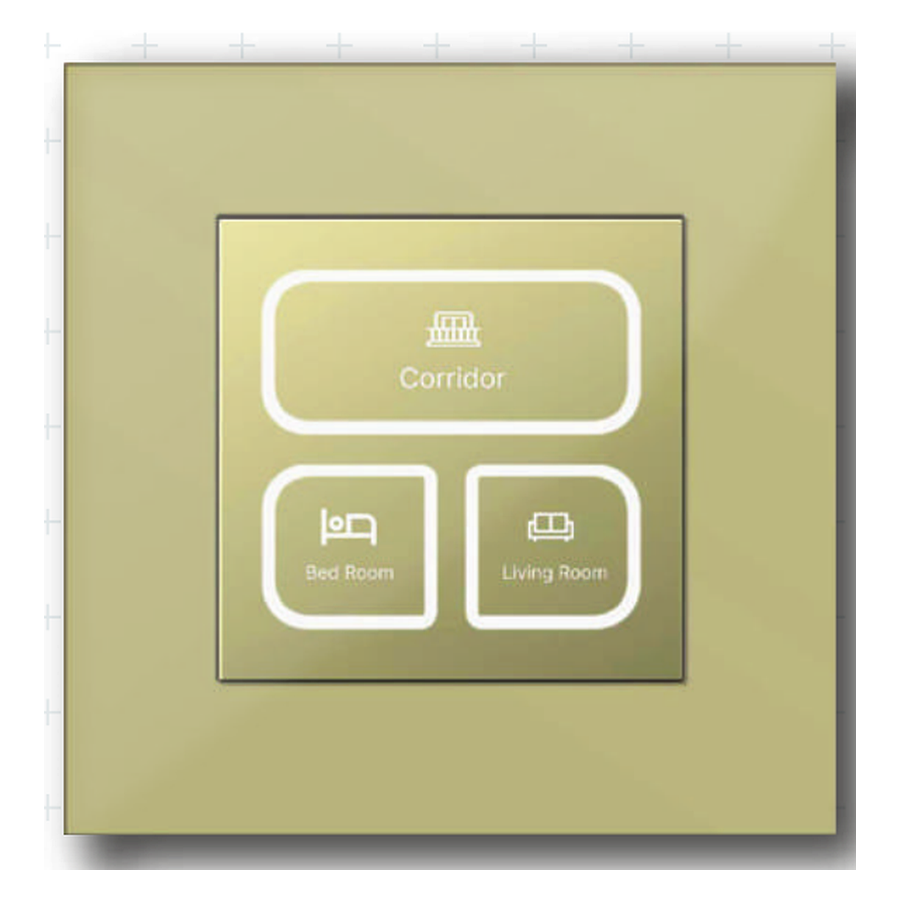

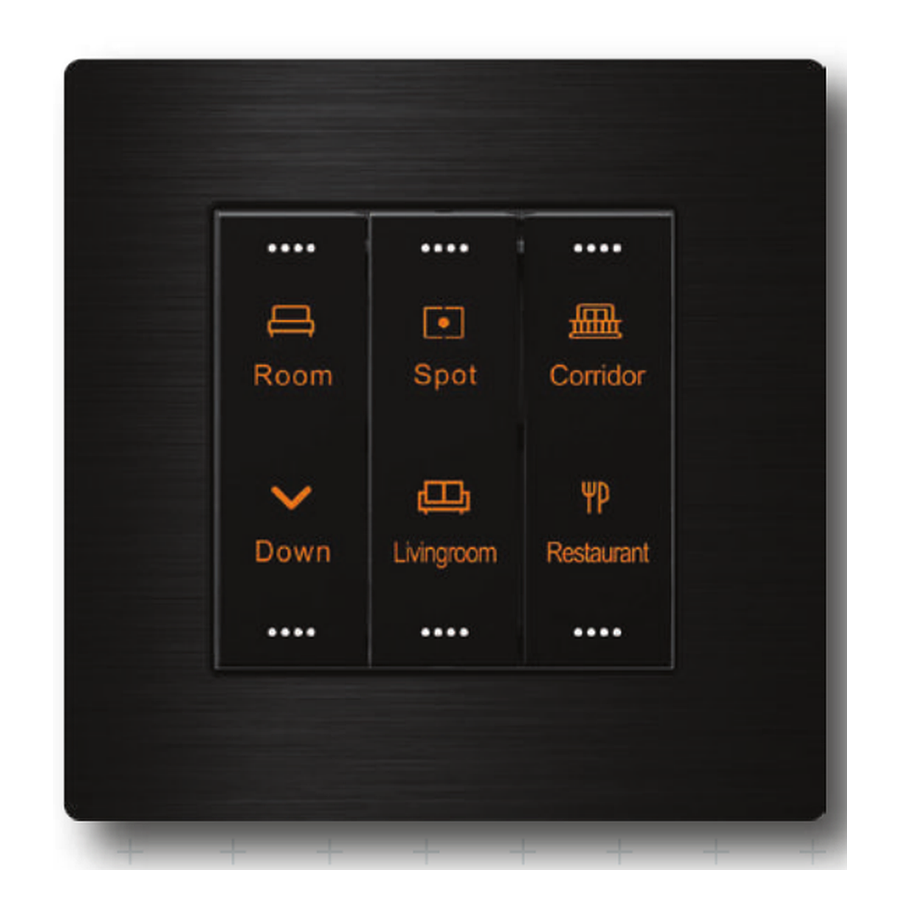

One design language across every gang count. Panels are supplied in black glass, black and gunmetal brushed metal and champagne gold, with icons and labelling engraved to your room layout.
Control functions
Key features
- Metal construction — finish does not wear over time
- Brushed and polished finishes in multiple colours
- Toggle lever and flat touch variants
- Backlit, laser-engraved labelling
- Configurable function assignment
- Two, three, four and multi-gang formats
Specifications
- Technology
- Networked RS485 Modbus protocol
- Power supply
- 12 V – 36 V DC
- Material
- 4 mm tempered glass
- Touch type
- High-sensitivity LED touch panel
- Size (1–6 button)
- 86 × 86 mm
- Size (8 button)
- 105 × 86 mm
- Working temperature
- −10 °C to 60 °C
- Working humidity
- 10 – 95 % RH
- Service life
- Up to 1,000,000 touches
- Backlighting
- LED backlit buttons
- Touch icons
- Customisable, laser engraved
Specifications are indicative and may vary by configuration. Contact us to confirm details for your project.
Need help specifying?
Tell us about the property and we will advise on panel counts, finishes and controller sizing.
