DasKlug Hardware
Thermostats
A 4 mm tempered glass thermostat with an LCD readout and an integrated temperature sensor, supplied with either 6 or 8 switches so climate and lighting share one plate rather than competing for wall space. Available as a flat touch panel or with a machined rotary knob. Because every DasKlug touch panel also carries a temperature sensor, the system works from a room average instead of trusting one thermostat that may sit in a warm or draughty corner.
The range
Variants

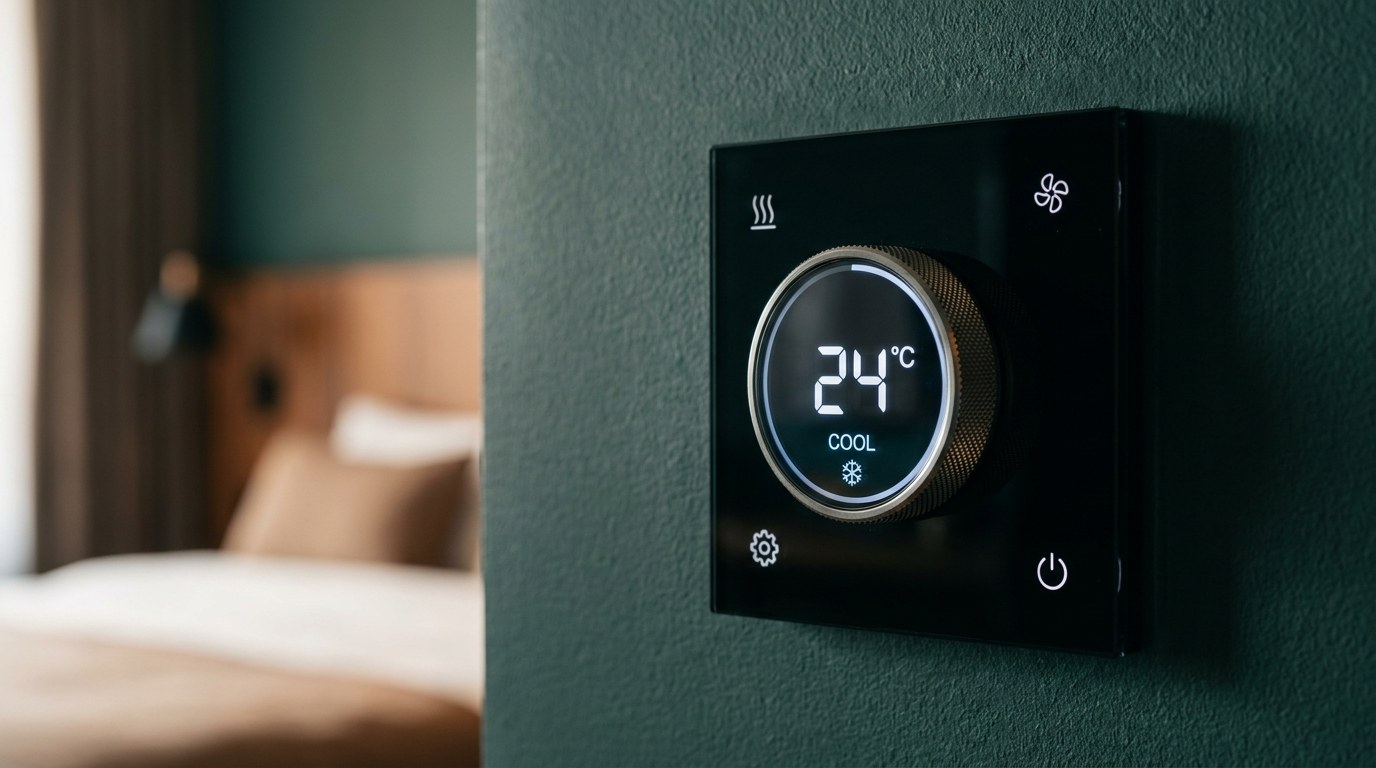

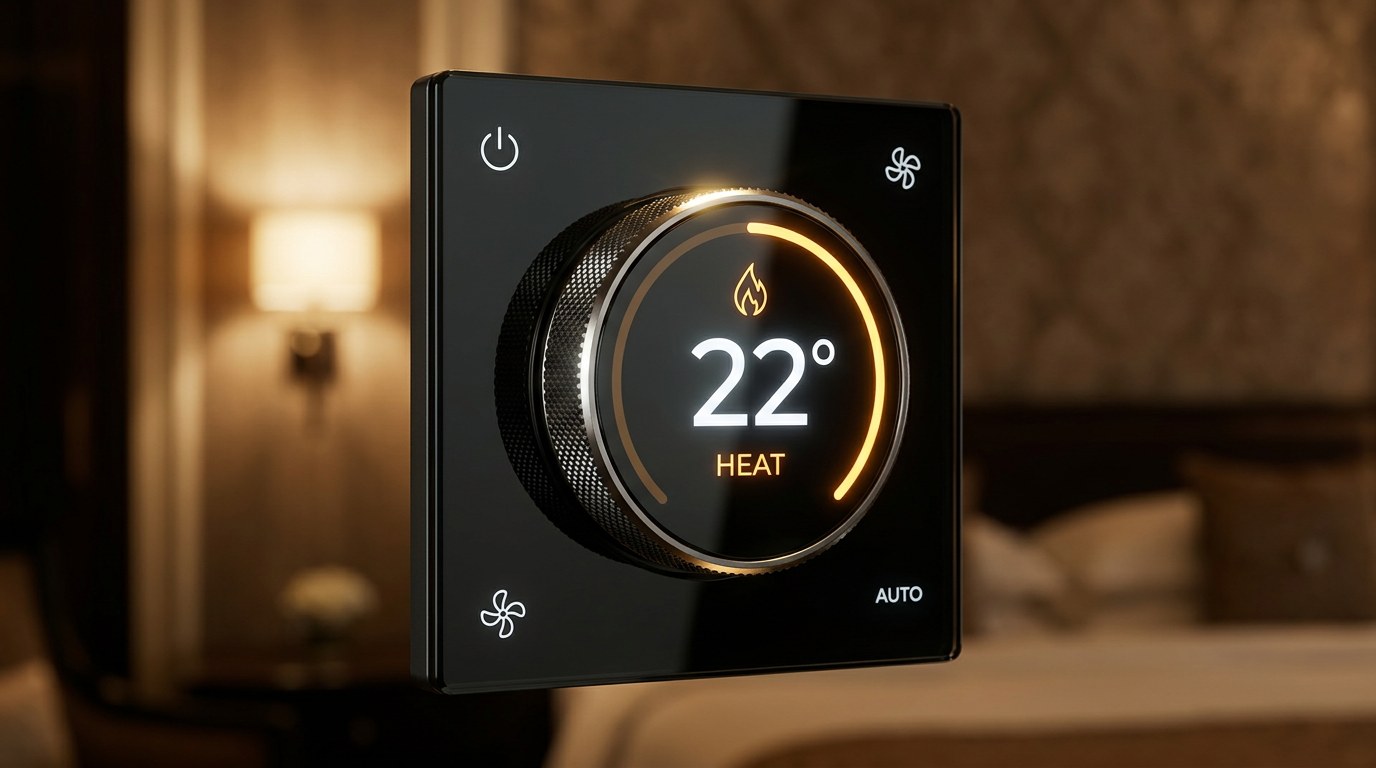

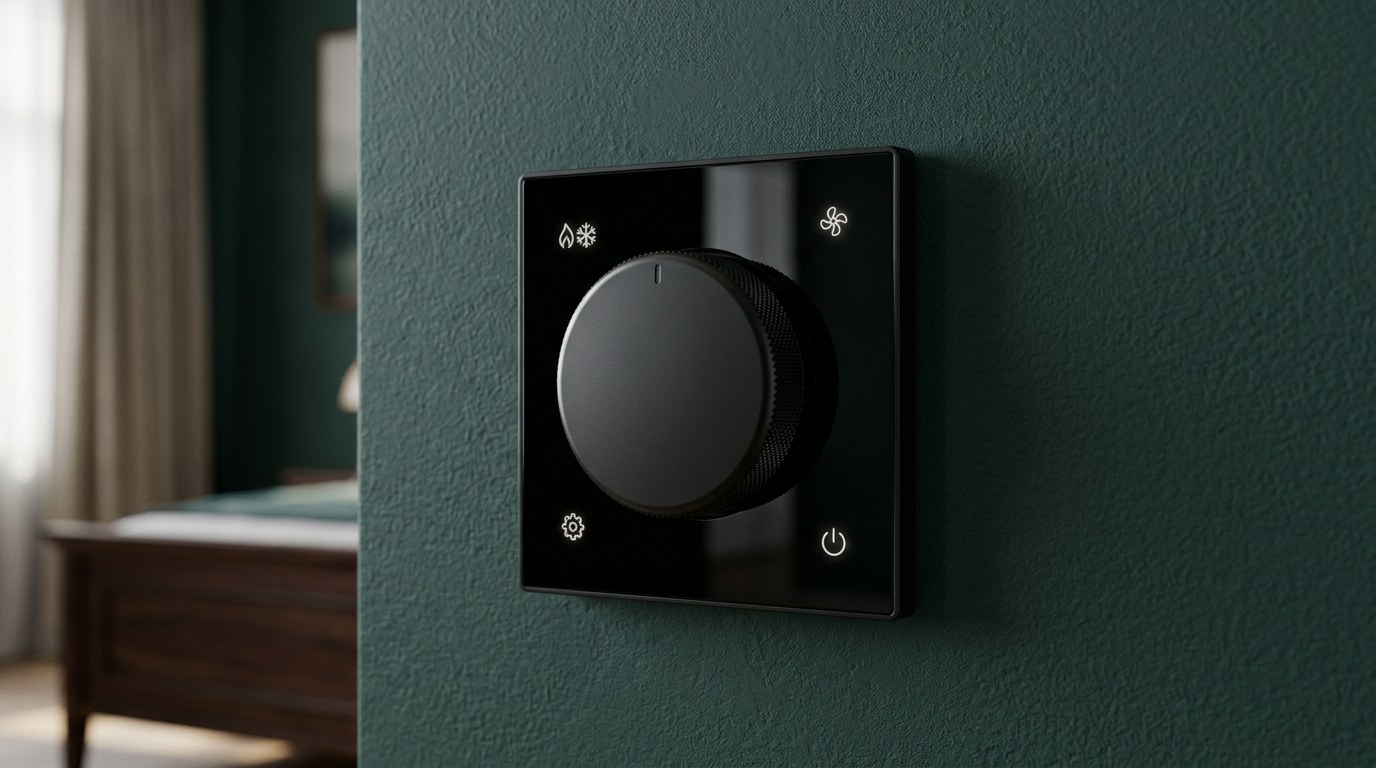

Rotary knob and flat touch faces, in 6 and 8 switch configurations, so climate and lighting share a single plate.
Control functions
Key features
- Integrated temperature sensor
- LCD display with white LED backlight
- Supplied with 6 or 8 integrated switches
- Rotary knob or flat touch variants
- Blue LED touch feedback, rated to 1,000,000 touches
- Customisable colour and touch icons
- Room-average temperature across all panel sensors
- Automatic setback when the room is vacant
Specifications
- Part number
- DACCFMB
- Voltage
- 12 V DC
- Protocol
- Modbus RTU
- Interface
- RS485
- Sensor
- Temperature
- Material
- 4 mm tempered glass
- Colour
- Customisable
- Size
- 105 × 86 mm
- Weight
- ± 250 g
- Operation
- 6 and 8 buttons
- Touch feedback
- Blue LED
- Display type
- LCD
- Backlight
- White LED
- Touch icons
- Customisable
- Service life
- 1,000,000 touches
Specifications are indicative and may vary by configuration. Contact us to confirm details for your project.
